Polarization Controller – Piezoelectric

Features:
  • Large Phase Change
  • High Reliability
  • Low Insertion Loss
  • Compact Size
  • High Optical Power Handling

3 Plates

Fiber Type SM400 SM450 PM400 PM460 SM600 PM630 780HP PM780 SM800 PM850 PM980 Hi1060 SM28 PM1550 SM1950 PM1950
Wavelength (nm) 360 – 530 480 – 650 400 – 480 460 – 700 620 – 650 620 – 650 760 – 800 760 – 800 830 – 870 830 – 870 960 – 1080 960 – 1080 1250 – 1650 1250 – 1650 1700 – 2300 1800 – 2200
# Plate 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC
Datasheet
Price $𝟣,𝟪𝟨𝟢 $𝟣,𝟨𝟧𝟢 $𝟤,𝟣𝟧𝟢 $𝟤,𝟫𝟢𝟢 $𝟣,𝟤𝟧𝟢 $𝟣,𝟫𝟫𝟢 $𝟣,𝟣𝟨𝟢 $𝟣,𝟩𝟫𝟢 $𝟣,𝟣𝟫𝟢 $𝟣,𝟨𝟧𝟢 $𝟣,𝟥𝟫𝟢 $𝟫𝟫𝟢 $𝟪𝟫𝟧 $𝟣,𝟣𝟫𝟢 $𝟣,𝟥𝟧𝟢 $𝟣,𝟨𝟧𝟢
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now

4 Plates

Fiber Type SM400 SM450 PM400 PM460 SM600 PM630 780HP PM780 SM800 PM850 PM980 Hi1060 SM28 PM1550 SM1950 PM1950
Wavelength (nm) 360 – 530 480 – 650 400 – 480 460 – 700 620 – 650 620 – 650 760 – 800 760 – 800 830 – 870 830 – 870 960 – 1080 960 – 1080 1250 – 1650 1250 – 1650 1700 – 2300 1800 – 2200
# Plate 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC
Datasheet
Price $𝟤,𝟢𝟧𝟢 $𝟣,𝟪𝟦𝟢 $𝟤,𝟥𝟦𝟢 $𝟥,𝟢𝟫𝟢 $𝟣,𝟦𝟦𝟢 $𝟤,𝟣𝟪𝟢 $𝟣,𝟥𝟧𝟢 $𝟣,𝟫𝟪𝟢 $𝟣,𝟥𝟪𝟢 $𝟣,𝟪𝟦𝟢 $𝟣,𝟧𝟪𝟢 $𝟣,𝟣𝟪𝟢 $𝟣,𝟢𝟪𝟧 $𝟣,𝟥𝟪𝟢 $𝟣,𝟧𝟦𝟢 $𝟣,𝟪𝟦𝟢
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
Email Inquiry
Fast Quote-Select Part #
Special Order

SKU: PIPC

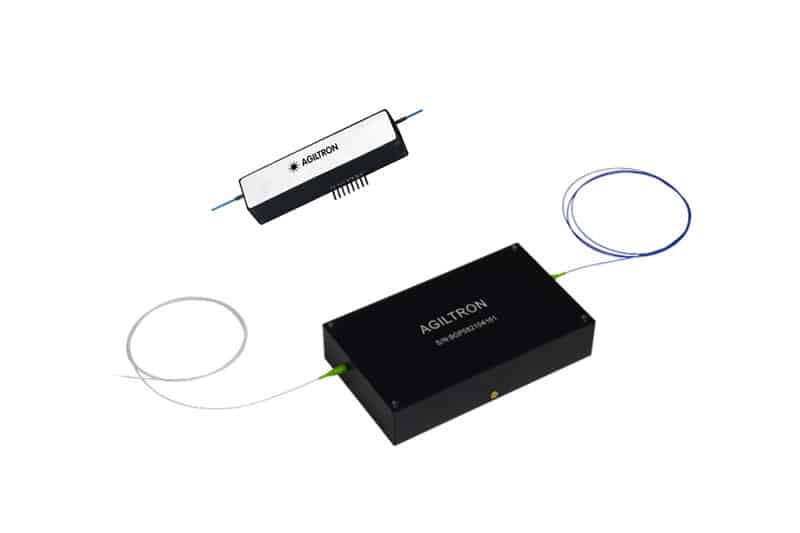

The Piezoelectric Polarization Controller (PIPC) utilizes three or four piezoelectric fiber squeezing plates arranged at a 45-degree angle apart to control fiber birefringence phase retardation. It features ultra-low insertion loss, all fiber type accommodation, high power handling, and a large phase change capability. We further offer driver with a convient 0-5V control inputs. The device is designed for customers to incorporate sensors and auto-control firmware, enabling endless polarization control while maintaining a constant output polarization without the need for resetting. The polarization controller is engineered to meet the operational requirements of fast response and continuous operation, providing an ultimate solution for precise polarization selection.
